Air Lift Load Lifter 5000 Ultimate air spring kit - Ford F150 Raptor 2021-2025

The Air Lift LoadLifter 5000 Ultimate 88414 is a heavy-duty rear air spring kit designed specifically for the Ford F-150 Raptor, providing adjustable load support while retaining the suspension travel required for off-road use.

The kit provides up to 5,000 lbs (2,268 kg) of load-levelling capacity, helping to maintain the correct ride height when carrying heavy loads or towing. By supporting the rear suspension, the air springs can help improve stability, steering response and braking behaviour when the vehicle is loaded.

Unlike a conventional LoadLifter installation, this kit includes Air Lift Air Spring Cradles. These allow the air springs to separate from their lower mounts as the suspension reaches full extension, so the air springs do not restrict suspension droop. This makes the system particularly well suited to the long-travel rear suspension of the F-150 Raptor.

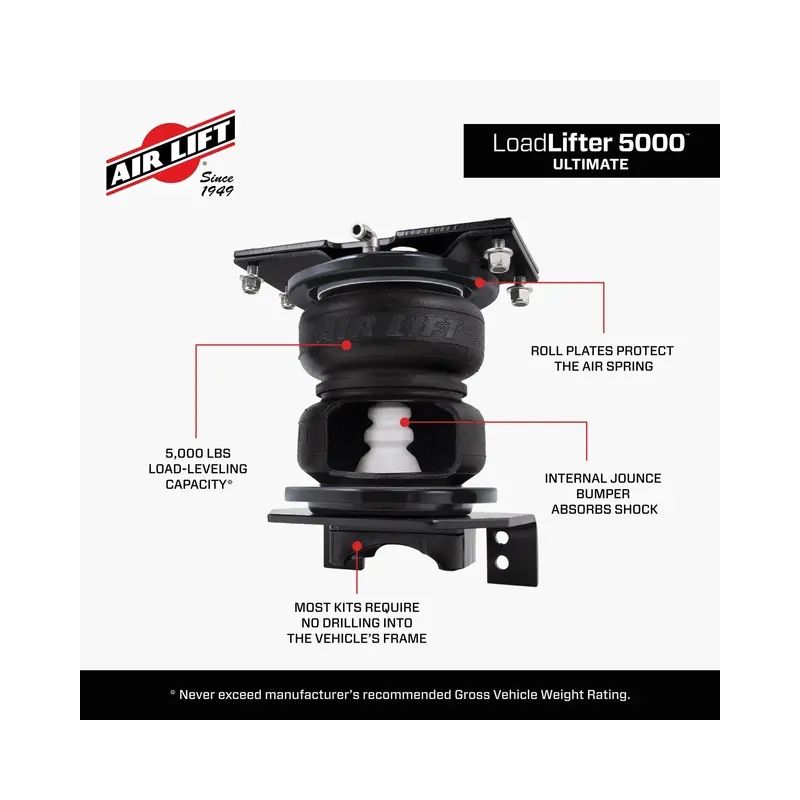

LoadLifter 5000 Ultimate air springs also incorporate an internal jounce bumper. This provides additional protection against bottoming out under heavy compression and allows the air springs to operate safely at zero air pressure when used without an onboard compressor system.

Air pressure can be adjusted to suit the vehicle's load, allowing additional support when towing or carrying weight while retaining a more comfortable ride when unloaded.

Features:

• Up to 5,000 lbs (2,268 kg) of adjustable load-levelling capacity

• Designed for the Ford F-150 Raptor

• Includes Air Spring Cradles to retain full suspension extension

• Internal jounce bumpers provide additional protection against bottoming out

• Fully adjustable to suit different loads and towing requirements

• Helps maintain vehicle ride height, stability and handling under load

• No drilling required for installation

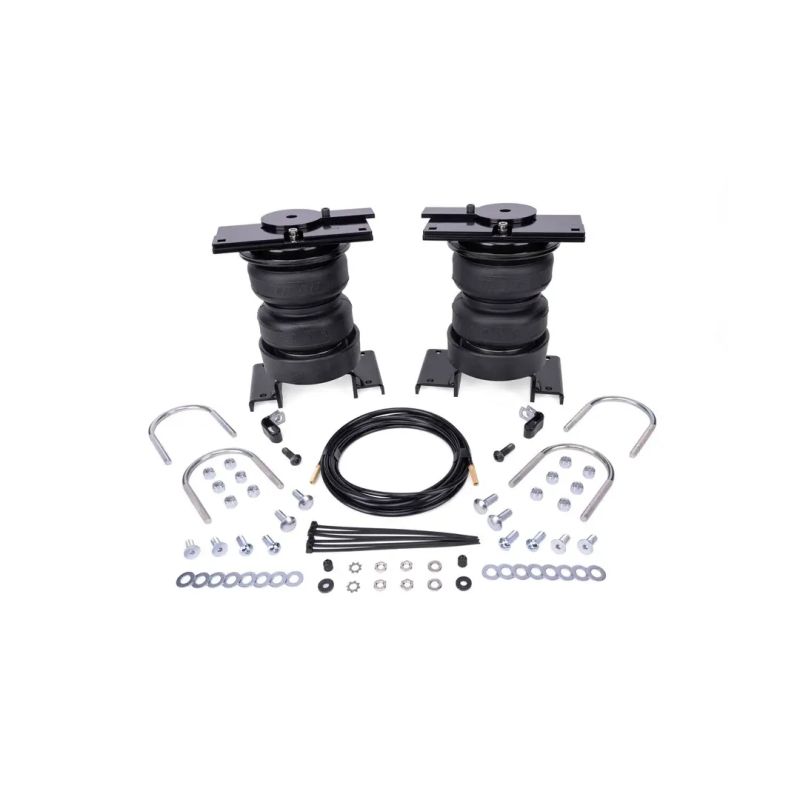

• Complete kit supplied with vehicle-specific mounting brackets and hardware

• Fits all Ford F-150 Raptor models and trim levels, including Raptor R

Air Lift part number: 88414

Air springs are designed to support the vehicle's existing suspension and do not increase the manufacturer's maximum permitted vehicle weight or axle ratings.
