Land Rover Discovery 1 and 2 Rear Air Lift 1000 Helper Spring Kit View larger

Land Rover Discovery 1 and 2 Rear Air Lift 1000 Helper Spring Kit

61741(46159)

Load Support kit for the Discovery 1+2 models (without factory air)

More details

In Stock

Interest Free Finance Available

Spend £ 500.00 or more to qualify for 0% Interest Finance.
Only available to UK residents over 18, subject to terms and conditions.

£ 198.99 inc. VAT

Data sheet

Manufacturer Air Lift
Vehicle Make Land Rover
Vehicle Model Discovery
Type Rear Air Lift 1000

More info

Important: suitable for vehicles with internal spring diameter of 110-120mm.

Supplied with the Intermotiv heavy duty spacer kit.

The Airlift 1000 kits are engineered as an add-on helper spring for vehicles with open coil spring suspension.

These systems improve handling, reduce roll, and prevent the vehicle from bottoming out. They can be adjusted either with the use of one of our onboard compressor options, or with a standard tyre pump.

These kits are made from very tough molded polyurethane, and come complete with a lifetime limited warranty (excluding custom kits).

This kit comes complete with:
Two Polyurethane air springs
1/4" flexible air hose
Spacers/Protectors
Fitting Kit
Fitting Instructions

Features:

Add support to open coil springs
Front systems can provide support for snowplows, winches etc.
Improves ride and handling.
Improves traction for drag racing.
Reduces roll, sway and bottoming out.
Tough molded polyurethane construction.
Quick connecting easy-to-use engineered polymer air fittings.
Completely adjustable with a tyre pump, or an onboard control system
Up to 1,000 pounds of leveling capacity.
Lifetime limited warranty for your peace of mind (excludes custom kits, please enquire for details and limitations)

Note: this kit does not enable you to exceed the manufacturer's weight ratings.

Air Lift 1000

Air Lift 1000 Adjustable Load Support

The Air Lift 1000 kit provides additional support for vehicles with coil spring suspension. The polyurethane air bags fit inside the existing springs, helping to maintain ride height, improve stability and reduce bottoming out when carrying additional weight.

By adjusting the air pressure, the suspension can be tailored to suit changing loads without permanently fitting stiffer springs. Whether you're carrying tools, transporting equipment or heading away in a fully loaded camper, Air Lift 1000 provides support when you need it.

Comparison showing rear suspension sag under load and corrected ride height with Air Lift 1000

Adjustable air bags help maintain ride height when carrying additional weight.

How does it work?

The air bags are installed inside the vehicle's original coil springs, and provide additional support as the air pressure is increased.

When carrying a heavier load, simply increase the pressure to help restore the vehicle towards its normal ride height. When lightly loaded, pressure can be reduced to allow the original suspension to operate more freely.

Air pressure can be adjusted using a standard tyre pump or an optional onboard compressor system.

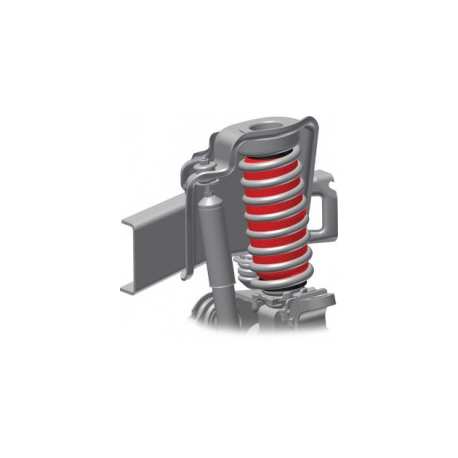

Air Lift 1000 polyurethane air bag shown inside a coil spring

Benefits of Air Lift 1000 Load Support

Adjustable Support

Increase or decrease air pressure to suit the load, without permanently changing the spring rate.

Limited Lifetime Warranty

Backed by Air Lift's limited lifetime warranty, providing long-term reassurance and support.

Stop Bottoming Out

Additional support helps prevent the suspension reaching the end of its travel under load.

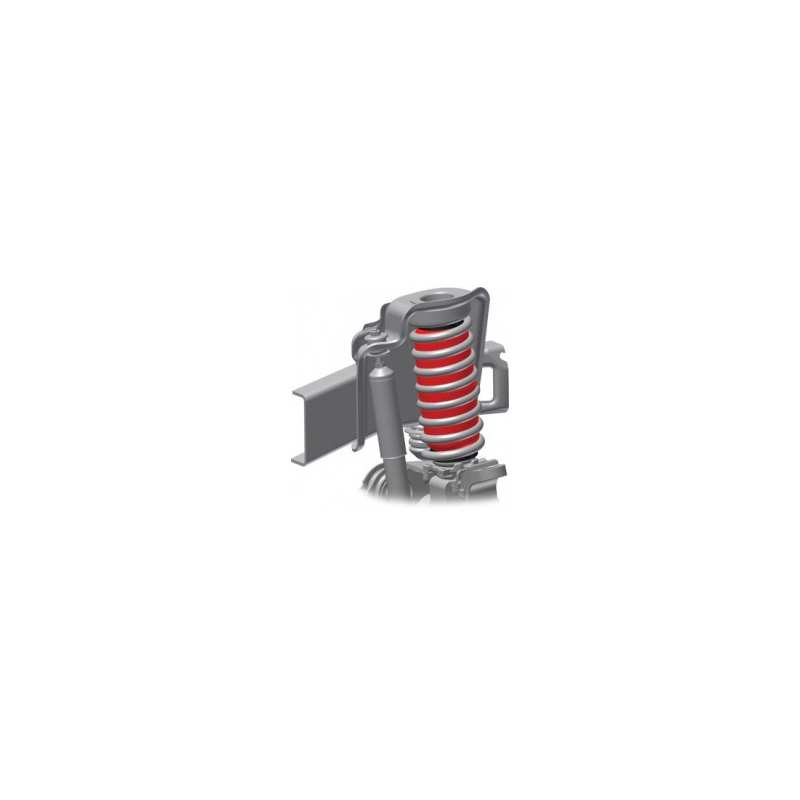

Example of an Air Lift 1000 air spring installed inside a vehicle's original coil spring

Example installation showing an Air Lift 1000 cylinder inside a coil spring.

Designed to work with your existing suspension

The Air Lift 1000 kit is designed to supplement the original coil springs, rather than replace them.

The air bags sit within the springs and provide additional support as required, making them a practical option for vehicles that regularly carry varying loads.

Installation generally requires no major suspension modifications, although the procedure varies depending on the vehicle.

What's included?

  • Two polyurethane air springs
  • 1/4" flexible air line
  • Inflation valve and fittings
  • Spacers and protectors where required
  • Installation hardware and instructions

Important information

Air Lift 1000 kits provide additional suspension support but do not increase the vehicle's permitted payload, axle weight ratings or gross vehicle weight.

Always observe the vehicle manufacturer's weight limits and the minimum and maximum operating pressures specified for the particular kit.

Lifetime Limited Warranty Information

Air Lift 1000 air springs are covered by Air Lift's limited lifetime warranty, subject to the manufacturer's terms and conditions. Shipping charges may apply when supplying warranty replacements.
